Product Description
Diamond Segments are abrasive components welded onto saw blades or other processing tools via welding (e.g., high-frequency or laser welding). They are widely used in cutting, drilling and grinding hard materials like granite, sandstone, marble, limestone, travertine, basalt and concrete. These segments consist of synthetic diamond crystals bonded with metal matrices for durability and precision.

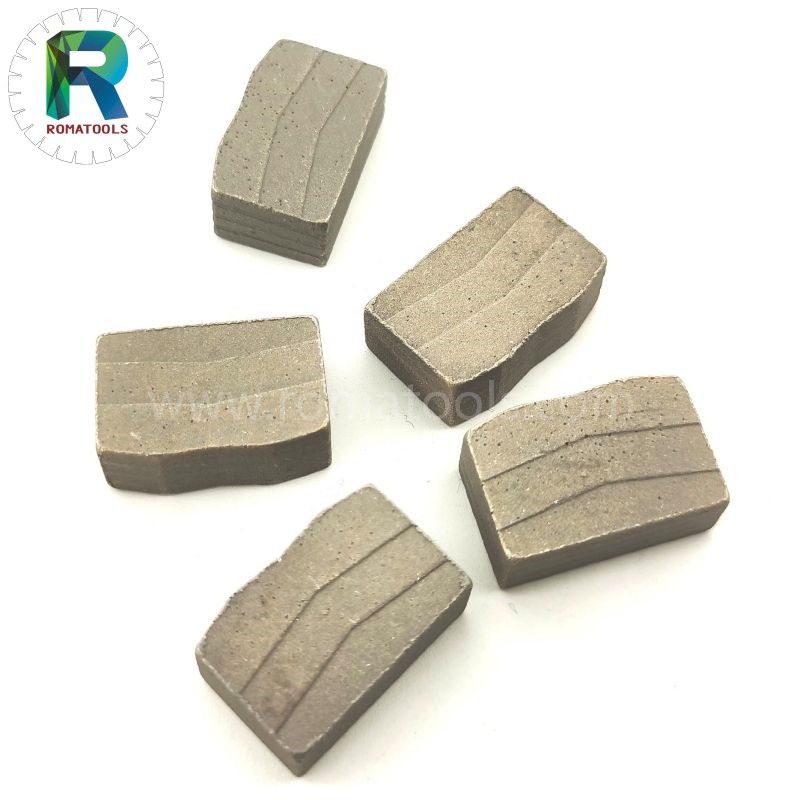

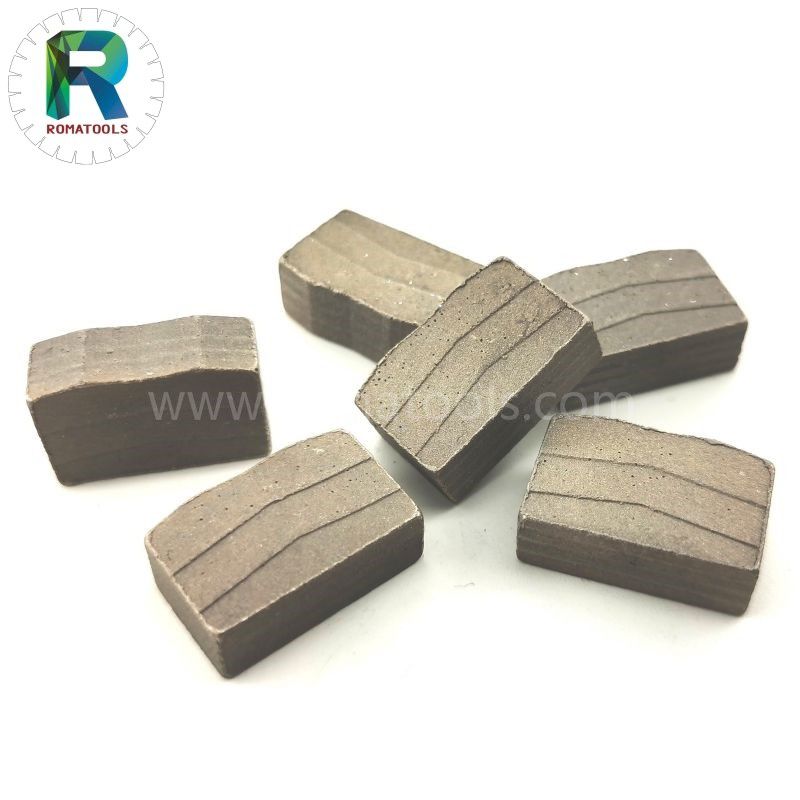

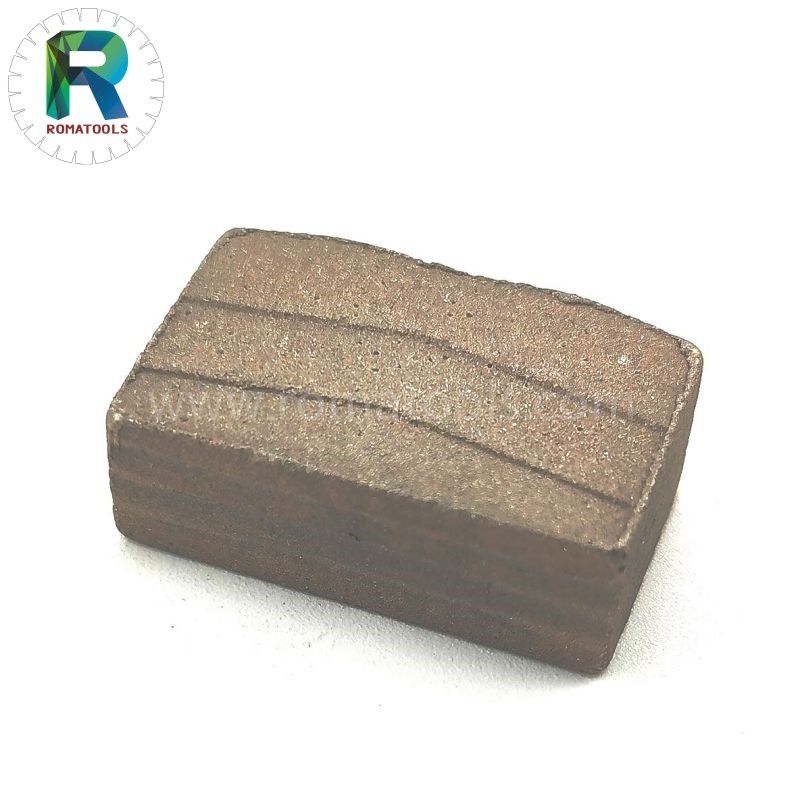

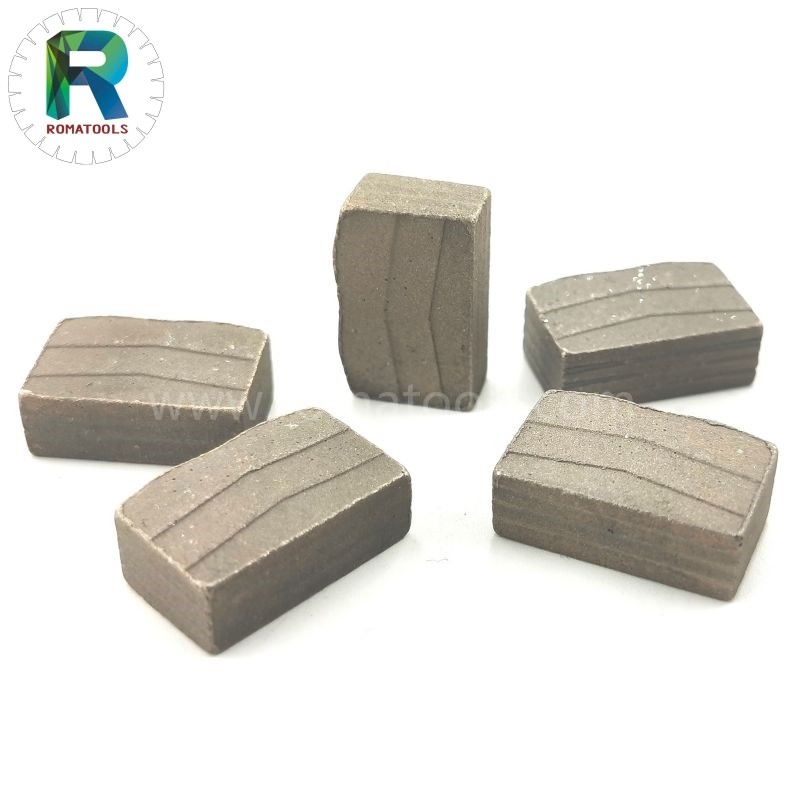

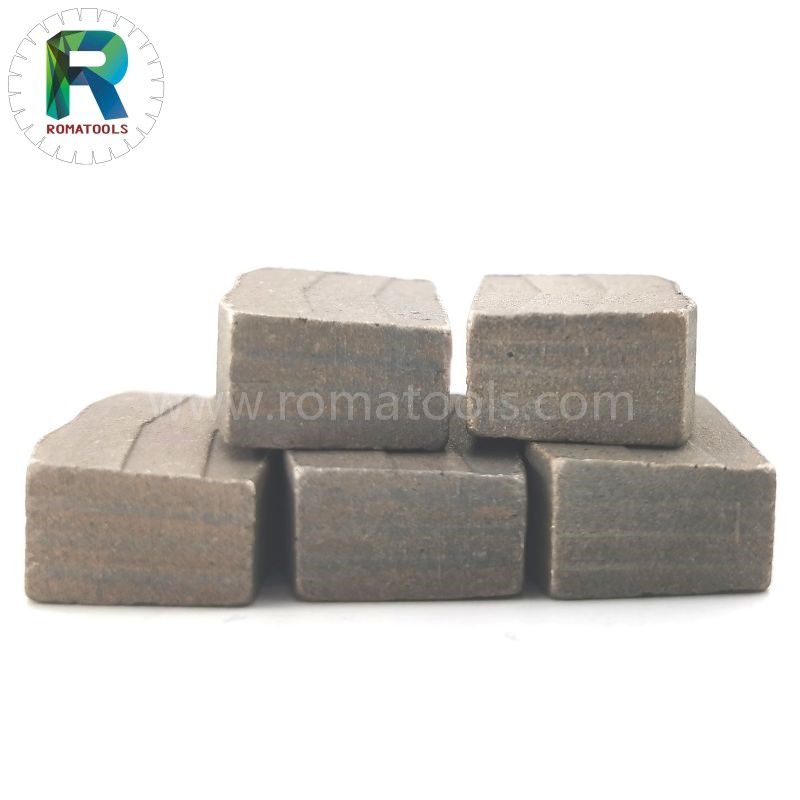

D1350-24x8.8/8.0x15mm Romatools Sandstone Diamond Segments
Specifications:
| Romatools Diamond Segments For Granite，Sandstone，Basalt | |||
| Diameter | Segment No. | Recommended Segment Size（mm） | |
| inch | mm | ||
| 12 | D300 | 21 | 40x2.8x12、40x3.0x12 |
| 14 | D350 | 24 | 40x3.0x12、40x3.2x15 |
| 16 | D400 | 28 | 40x3.6x12、40x3.6x15、20x3.6x20 |
| 18 | D450/D500 | 32/36 | 40x4.0x15、40x4.2x15、20x4.0x15 |
| 24 | D600 | 42/56 | 40x4.8x15、24x5.4/4.8x15 |
| 32 | D800 | 46/64 | 40x6.0x10、40x6.0x15、24x6.1/5.5x15 |
| 40 | D1000 | 70 | 24x7.0/6.2x15、24x7.1/6.5x15 |
| 48 | D1200 | 80 | 24x7.4/6.6x15、24x7.8/7.2x15、23x7.5/6.5x13、24x7.4/6.6x20、24x8.5x15 |
| 52/56 | D1300/1400 | 88/92 | 24x8.0/7.2x15、24x8.4/7.6x15、24x8.8/8.0x15、24x8.4/7.6x20、24x9.0x15 |
| 64 | D1600 | 108 | 23x9.2/8.4x13、24x9.2/8.4x15、24x9.6/8.8x15、24x9.2/8.4x20、24x10x15 |
| 72 | D1800 | 120 | 24x10.2/9.4x15、24x10.6/9.8x15、24x10.6/9.8x20、24x11x15 |
| 80 | D2000 | 128 | 24x10.6/9.8x15、24x10.6/9.8x20、24x11/10x20、24x12x15 |
| 88 | D2200 | 132 | 24x11.5/10.5x15、24x11.5/10.5x20、23x14/13x15、24x14/13x20 |
| 100 | D2500 | 140 | 24x12.5/11.5x15、24x12.5/11.5x20、23x13/12x15、24x12.5/11.5x25 |
| 120 | D3000 | 160 | 24x12.5/11.5x15、23x13/12x15、24x12.5/11.5x20、23x12.5/11.5x15 |
| 140 | D3500 | 180 | 23x13/12x15、23x14/13x15、24x14/13x20、24x13.5/12.5x25 |
| Note：Other specifications are available upon request! | |||

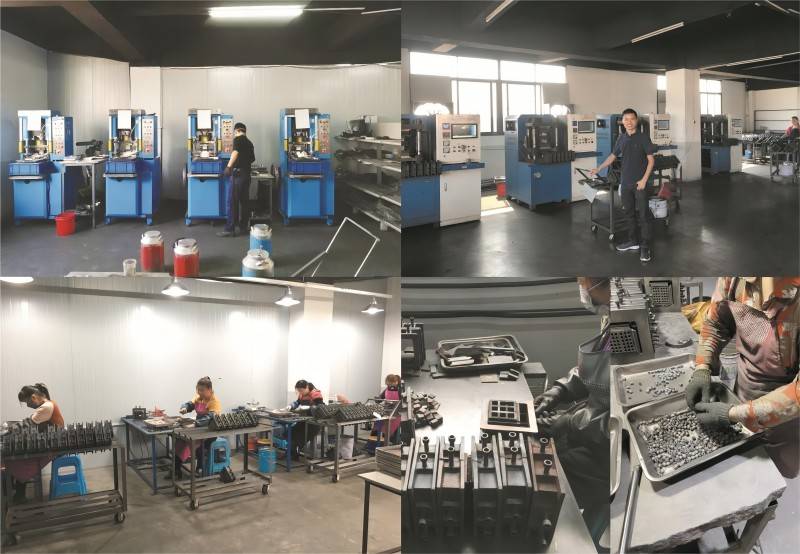

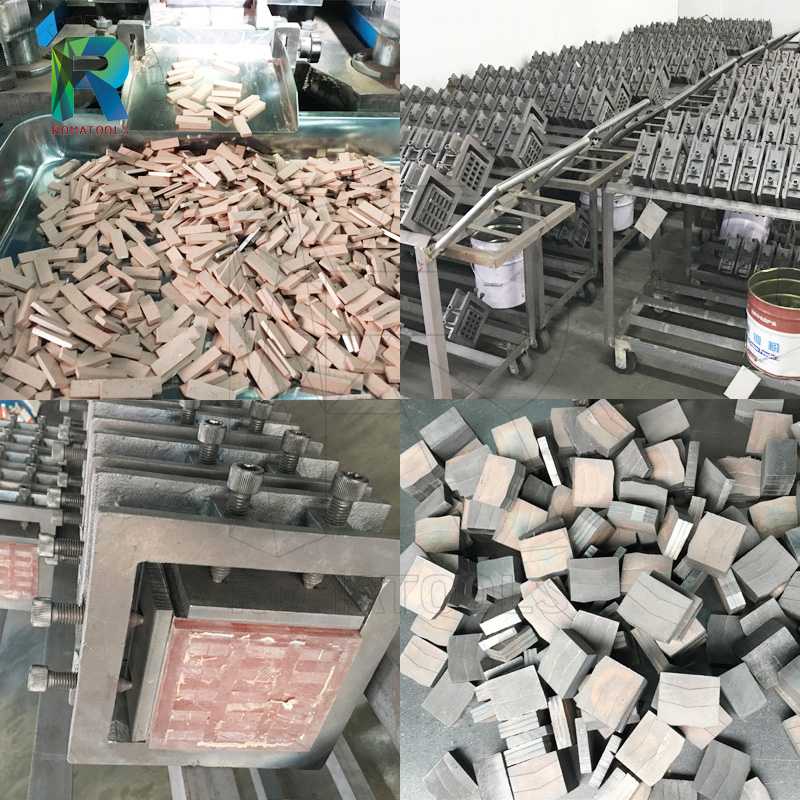

Production:

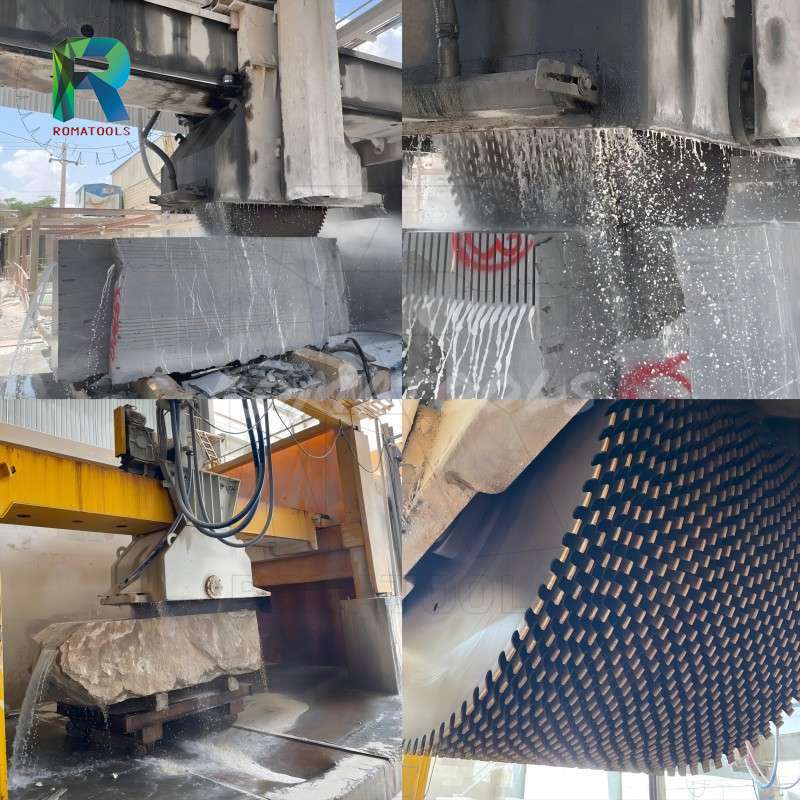

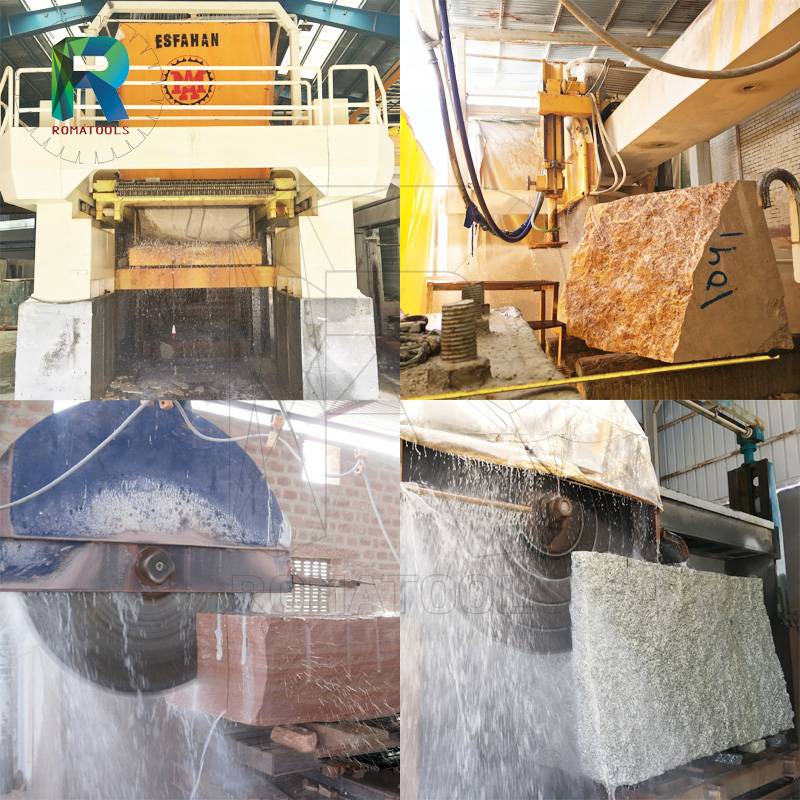

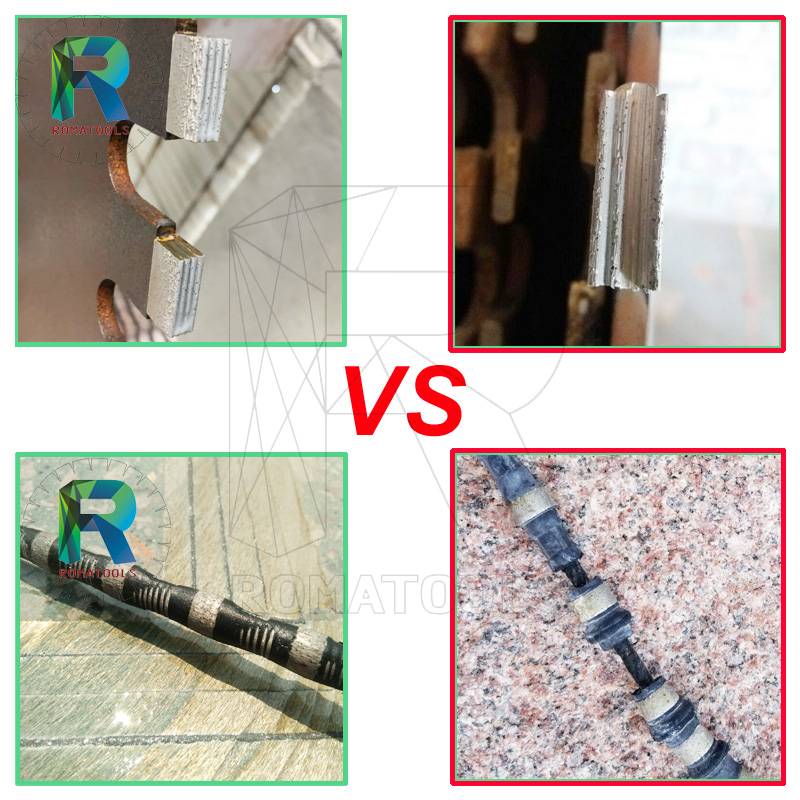

Applications:
Romatools:
