D1200 24x7.5x10mm Marble Travertine Segments with 3 Sides Opening Fast Cutting

Scan the QR code

Dia.: 1200mm
Spec.: 24x7.5x10mm
Num.: 80pcs/set
App.: Marble/Travertine
Opening: 3 Sides

Inquire

Product Description

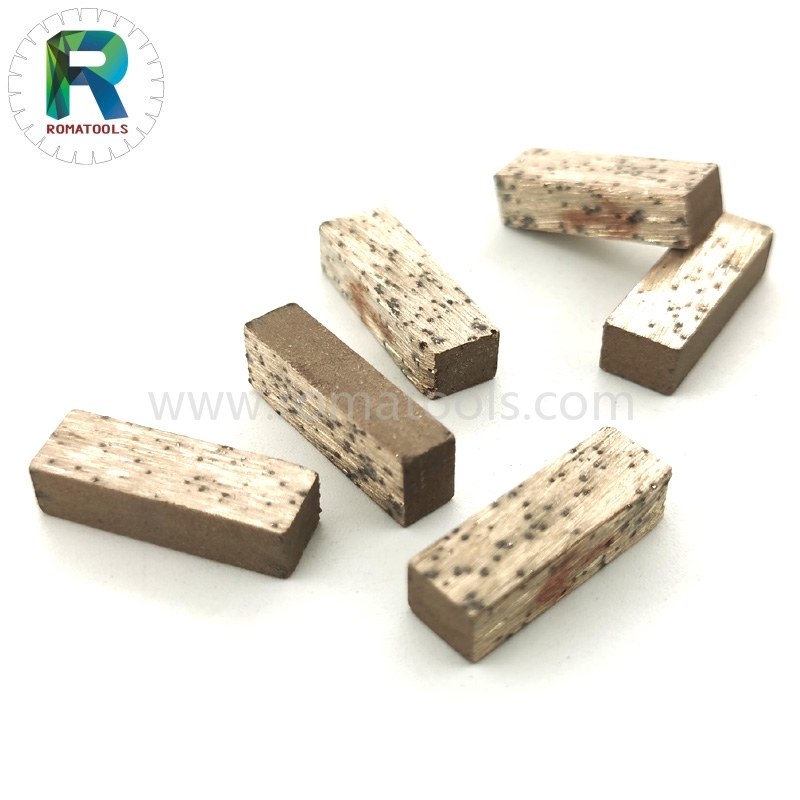

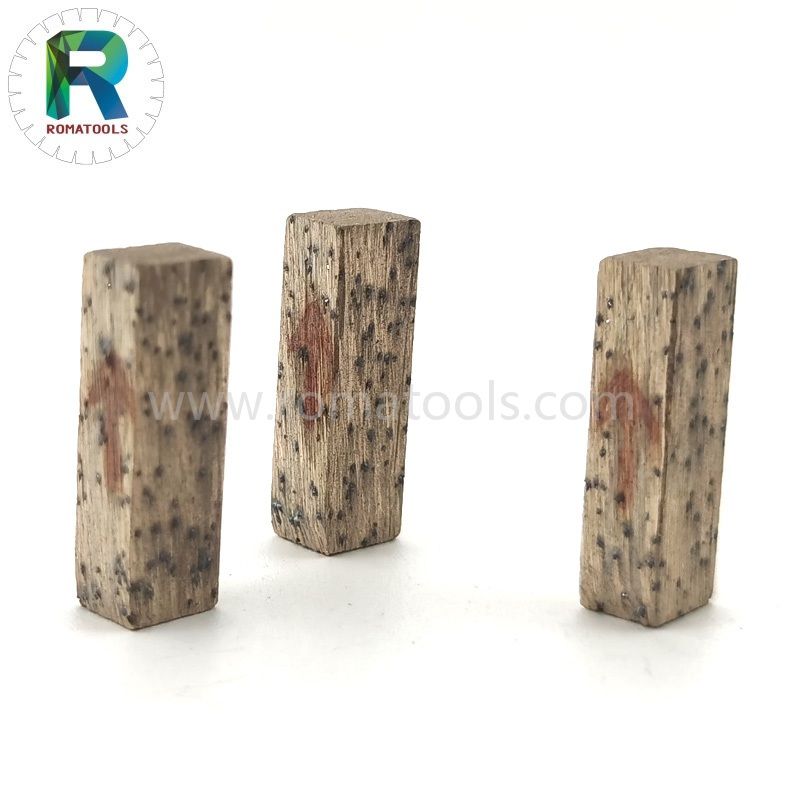

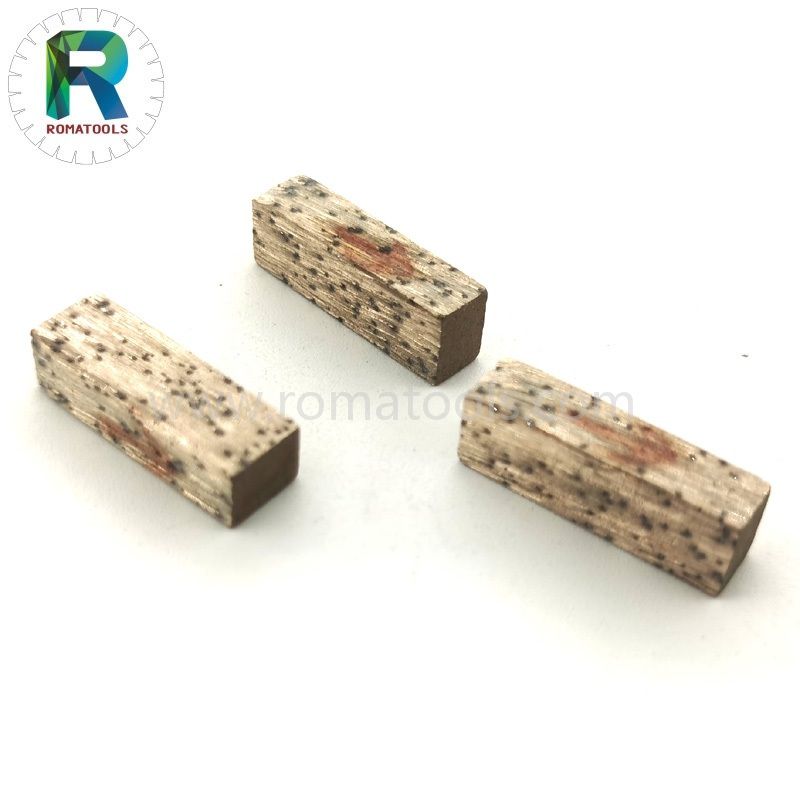

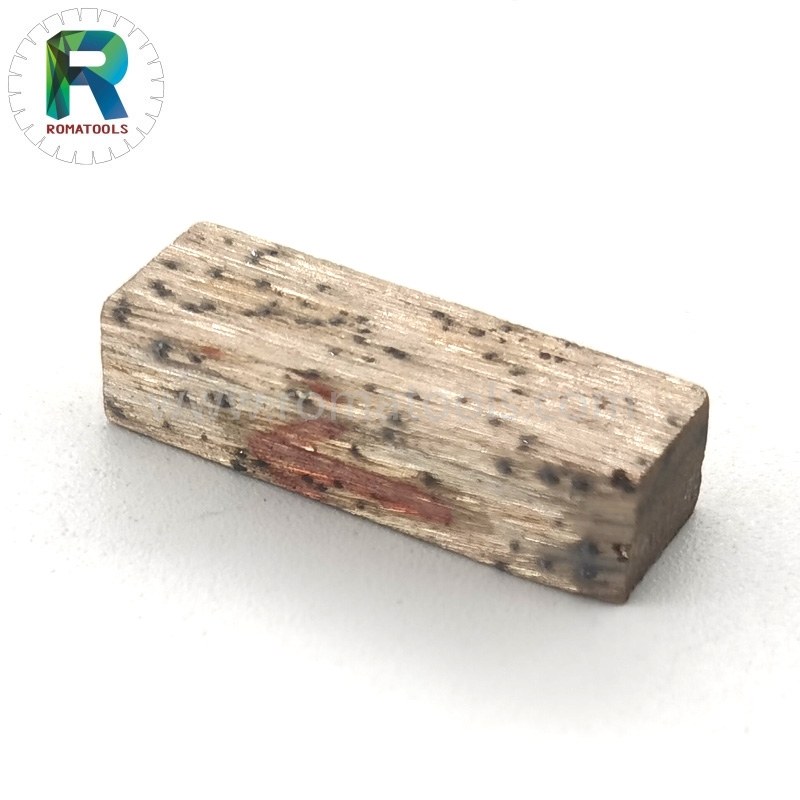

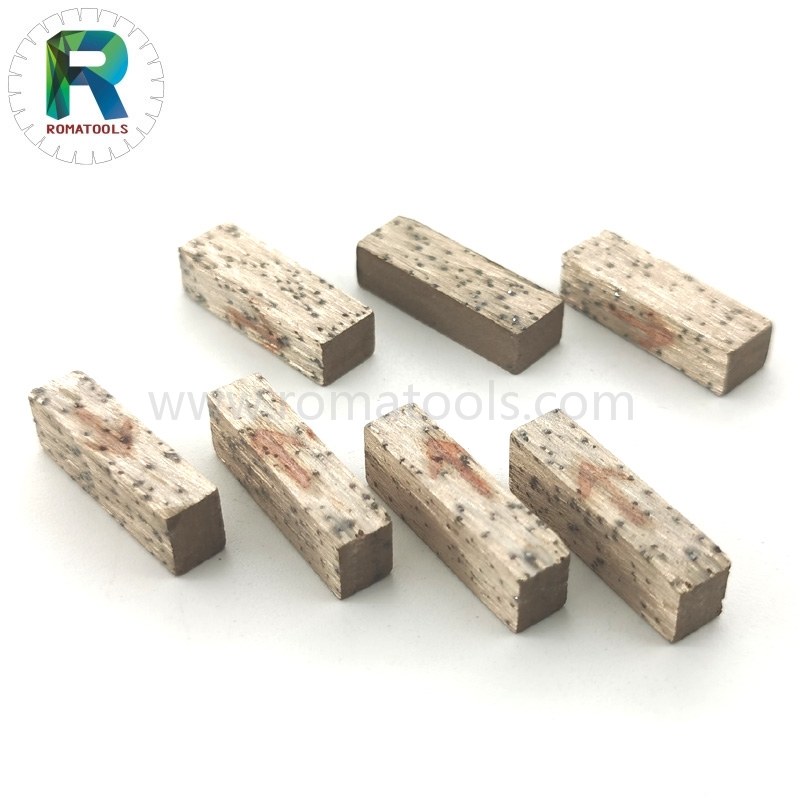

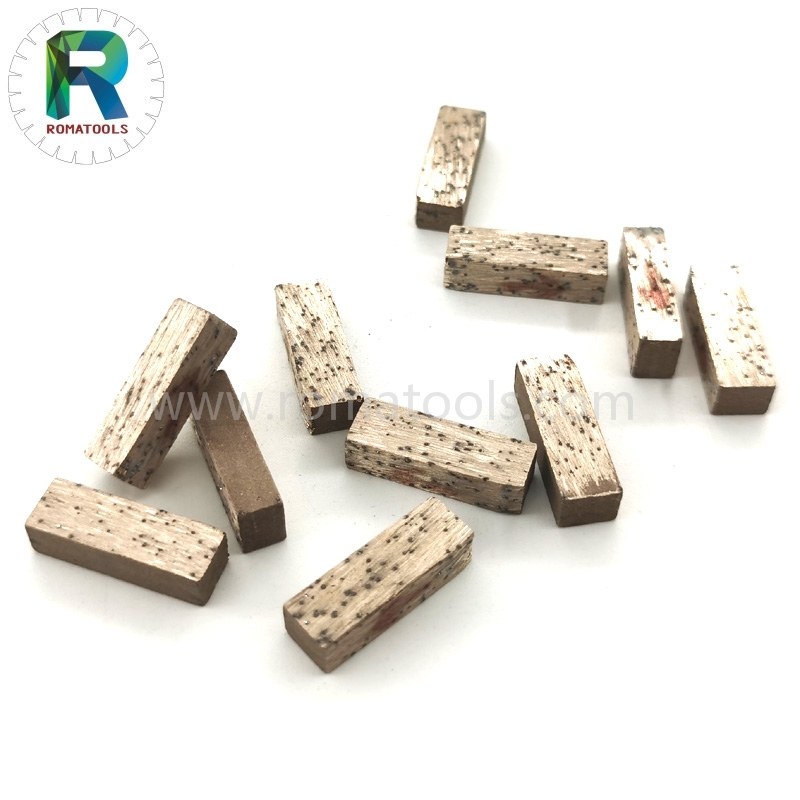

D1200 24x7.5x10mm Marble Travertine Segments with 3 Sides Opening Fast Cutting

Dia.: 1200mm

Spec.: 24x7.5x10mm

Num.: 80pcs/set

App.: Marble/Travertine

Opening: 3 Sides

Specifications:

Romatools Diamond Segments For Marble, Limestone, Travertine
Diameter		Segment No.	Recommended Segment Size（mm）
inch	mm	Segment No.	Recommended Segment Size（mm）
12	D300	21	40x3.0x10、40x3.2x10、40x3.8x10
14	D350	24	40x3.2x10、40x3.8x10
16	D400	28	40x3.6x10、40x5.0x10(Horizontal)
18	D450	32	40x3.6x10、40x4.0x10、40x4.2x10、40x4.2x10/12 D type、 40x4.5x10、40x5.0x10、40x5.0x12、40x5.0x10/12 D type
20	D500	36	40x4.2x10、40x4.5x10、40x5.0x10、40x5.0x12、 40x5.5x10(Horizontal)、40x6.0x10(Horizontal)
24	D600	42	40x5.0x10、40x5.0x12、40x5.5x10
32	D800	46	40x6.0x10、40x6.0x15、40x6.5x12
36/40	D900/D1000	64/70	40x7.0x10、40x7.5x10、40x8x10、40x8x12；24x8x10、24x8x13
48	D1200	80	40x8x10、40x8x12、40x8.5x10、40x8.5x12；24x7.5x10、 24x8x10、24x8x13；24x5x8、24x5.5x8、24x6x8、24x6.5x8
64	D1600	108	40x8.5x10、40x8.5x12；40x9.0x12、24x9x10、24x9.2x10、 24x9x13、24x9.5x13、24x10x10、24x10x13
80/88	D2000/2200	128/132	24x12x13、24x11x10
Gangsaw	Thickness (mm)		Recommended Segment Size（mm）
	3.0		20x4.5/3.9x8
	3.5		20x4.9/4.3x8、20x4.9/4.3x10
	4.0		20x5.4/4.8x8、20x5.4/4.8x10
Note：Other specifications are available upon request!
