D1600-24x10x13mm Romatools Marble Limestone Diamond Segments

Scan the QR code

Item No.：
SC207
Specifications：
D1600-24x10x13mm
Inquire

Product Description

Diamond Segments are abrasive components welded onto saw blades or other processing tools via welding (e.g., high-frequency or laser welding). They are widely used in cutting, drilling and grinding hard materials like granite, sandstone, marble, limestone, travertine, basalt and concrete. These segments consist of synthetic diamond crystals bonded with metal matrices for durability and precision.

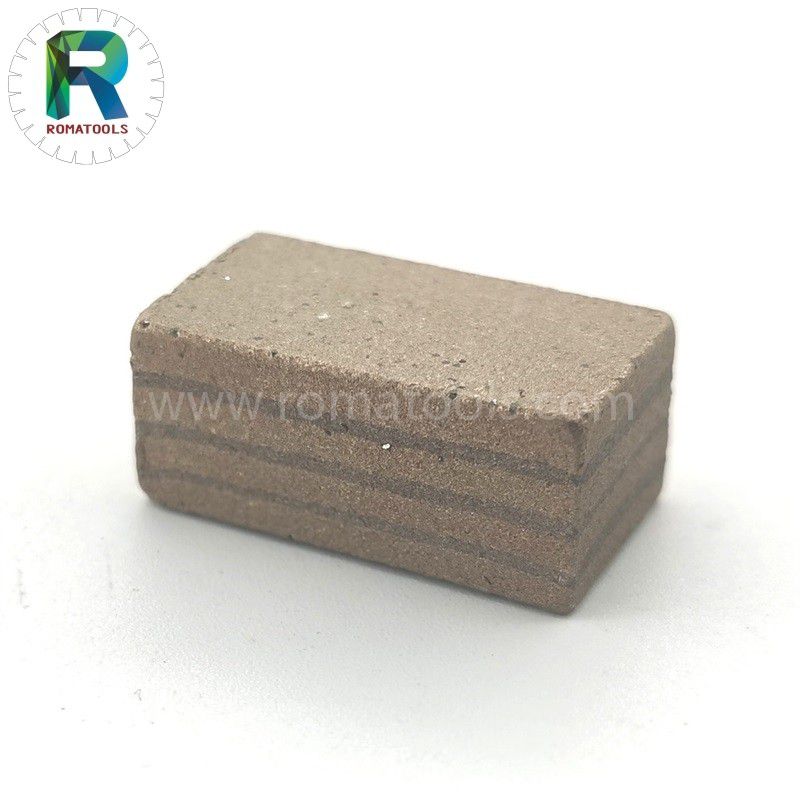

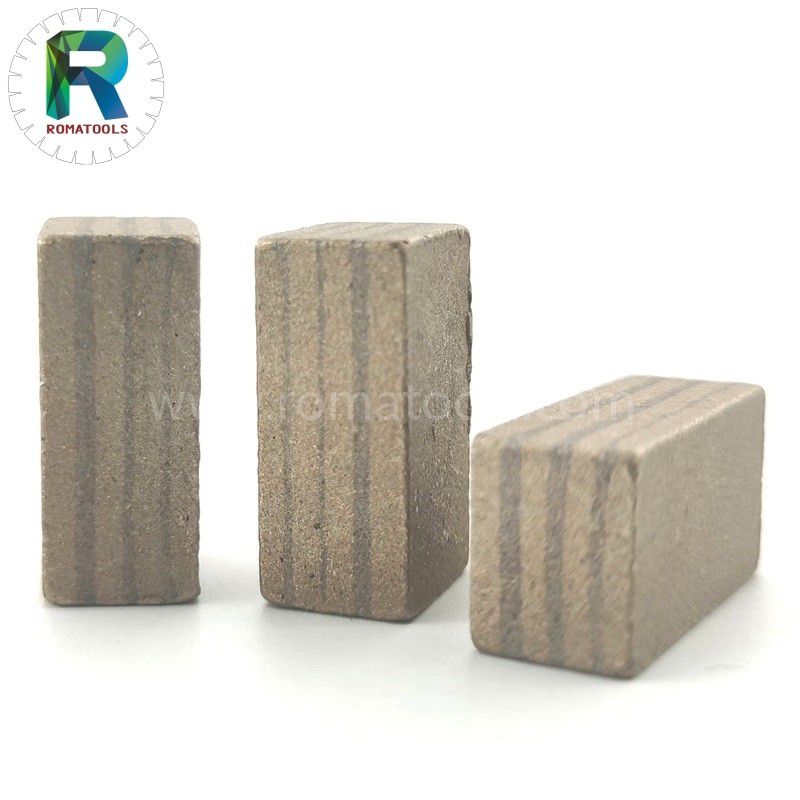

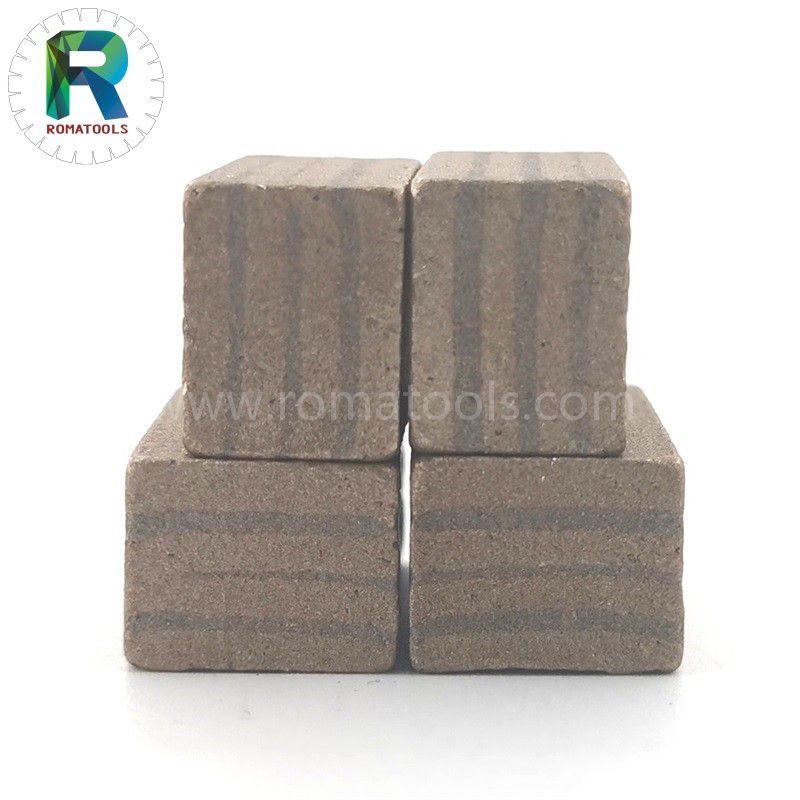

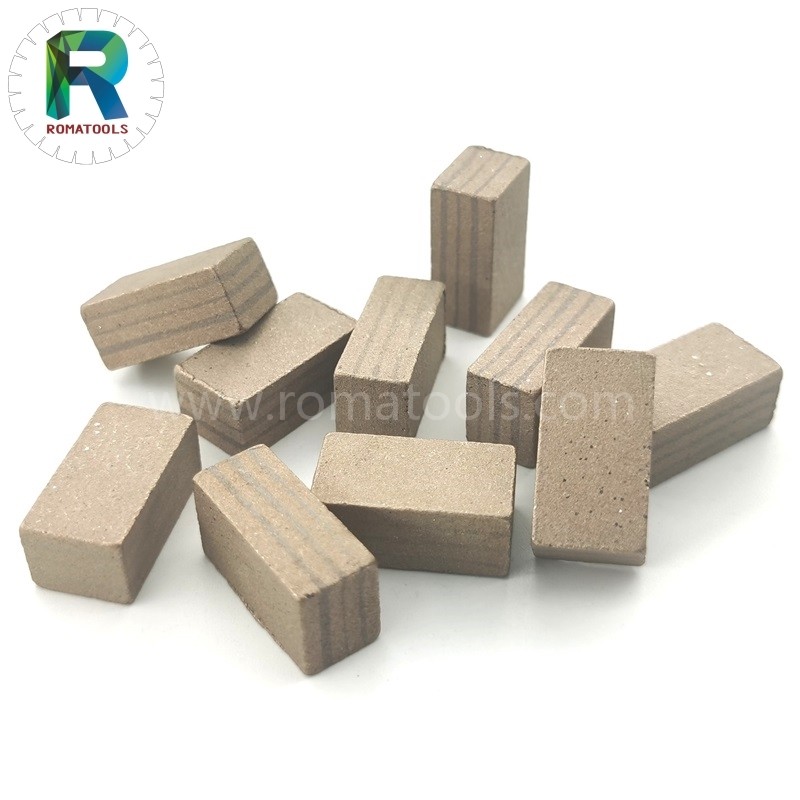

D1600-24x10x13mm Romatools Marble Limestone Diamond Segments

RM207 (6).jpg

Specifications:

Romatools Diamond Segments For Marble, Limestone, Travertine
DiameterSegment
No.		Recommended Segment Size（mm）
inchmm
12D3002140x3.0x10、40x3.2x10、40x3.8x10
14D3502440x3.2x10、40x3.8x10
16D4002840x3.6x10、40x5.0x10(Horizontal)
18D4503240x3.6x10、40x4.0x10、40x4.2x10、40x4.2x10/12 D type、
40x4.5x10、40x5.0x10、40x5.0x12、40x5.0x10/12 D type
20D5003640x4.2x10、40x4.5x10、40x5.0x10、40x5.0x12、
40x5.5x10(Horizontal)、40x6.0x10(Horizontal)
24D6004240x5.0x10、40x5.0x12、40x5.5x10
32D8004640x6.0x10、40x6.0x15、40x6.5x12
36/40D900/D100064/7040x7.0x10、40x7.5x10、40x8x10、40x8x12；24x8x10、24x8x13
48D12008040x8x10、40x8x12、40x8.5x10、40x8.5x12；24x7.5x10、
24x8x10、24x8x13；24x5x8、24x5.5x8、24x6x8、24x6.5x8
64D160010840x8.5x10、40x8.5x12；40x9.0x12、24x9x10、24x9.2x10、
24x9x13、24x9.5x13、24x10x10、24x10x13
80/88D2000/2200128/13224x12x13、24x11x10
GangsawThickness (mm)Recommended Segment Size（mm）
3.020x4.5/3.9x8
3.520x4.9/4.3x8、20x4.9/4.3x10
4.020x5.4/4.8x8、20x5.4/4.8x10
Note：Other specifications are available upon request!

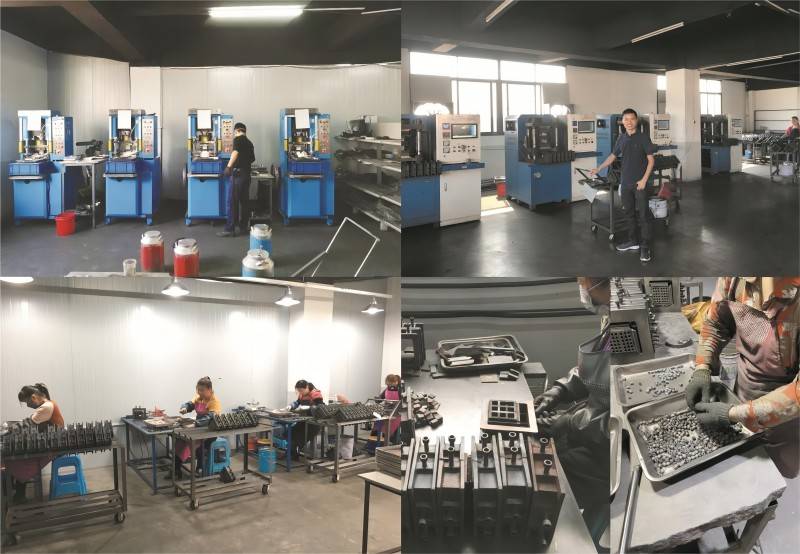

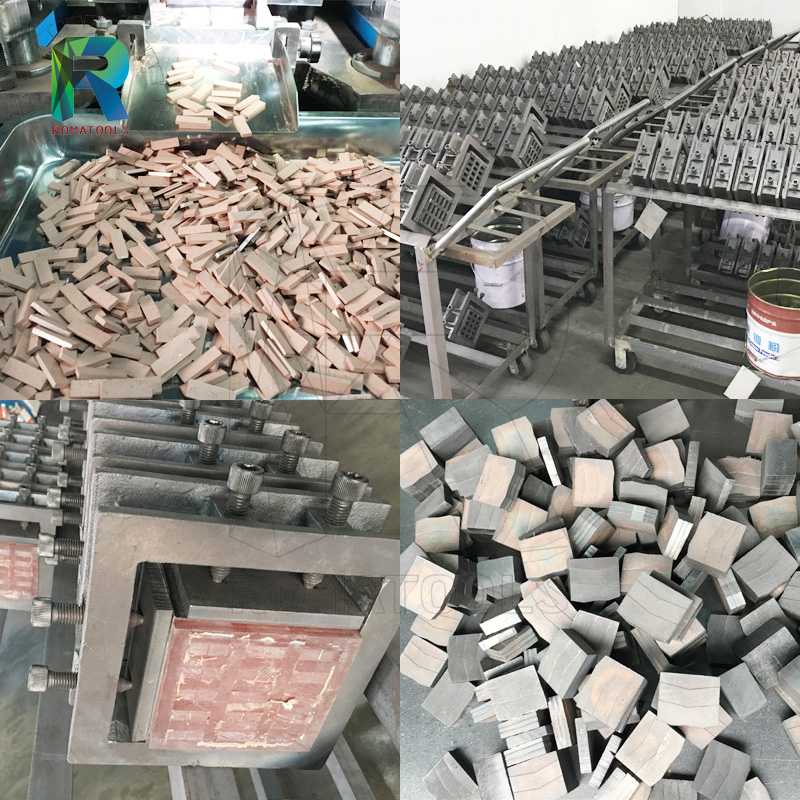

Production:

Factory Overview 800.jpgProduction Segments.jpg

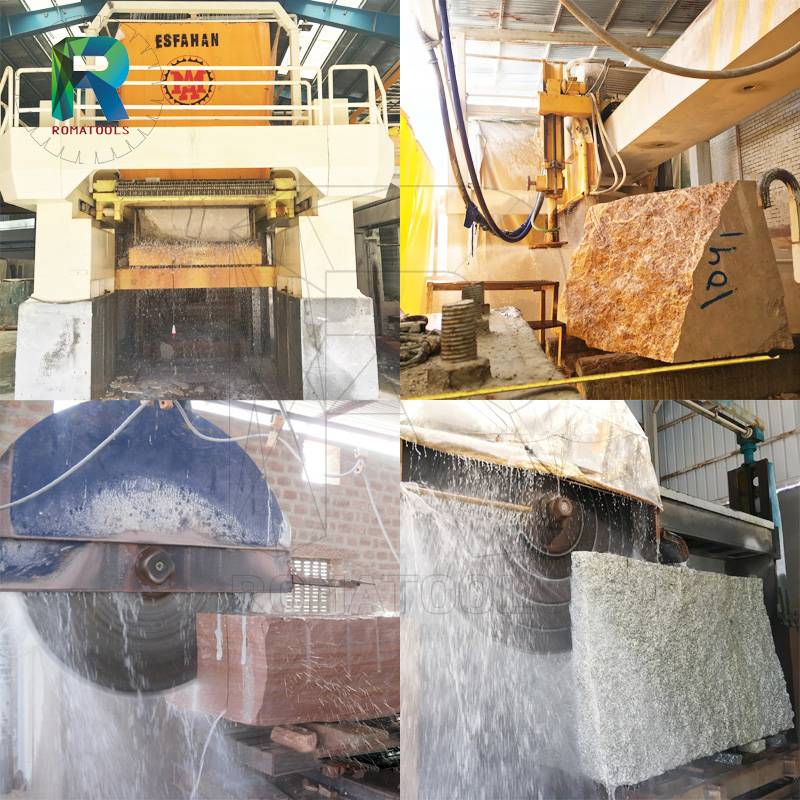

Applications:

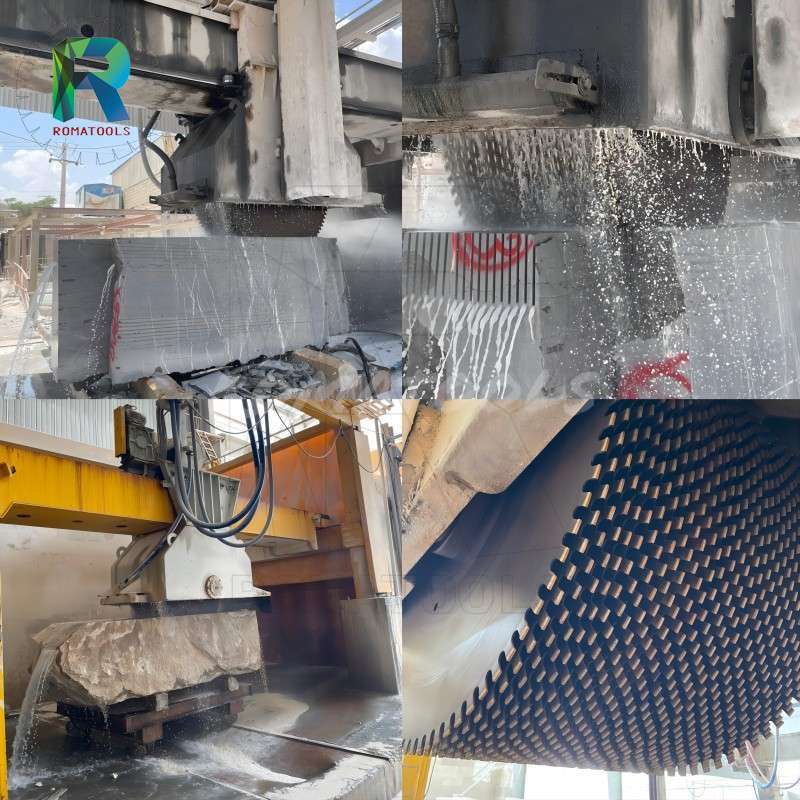

Application Segments 2.jpgApplication Segments Iran(1).jpg

Romatools:

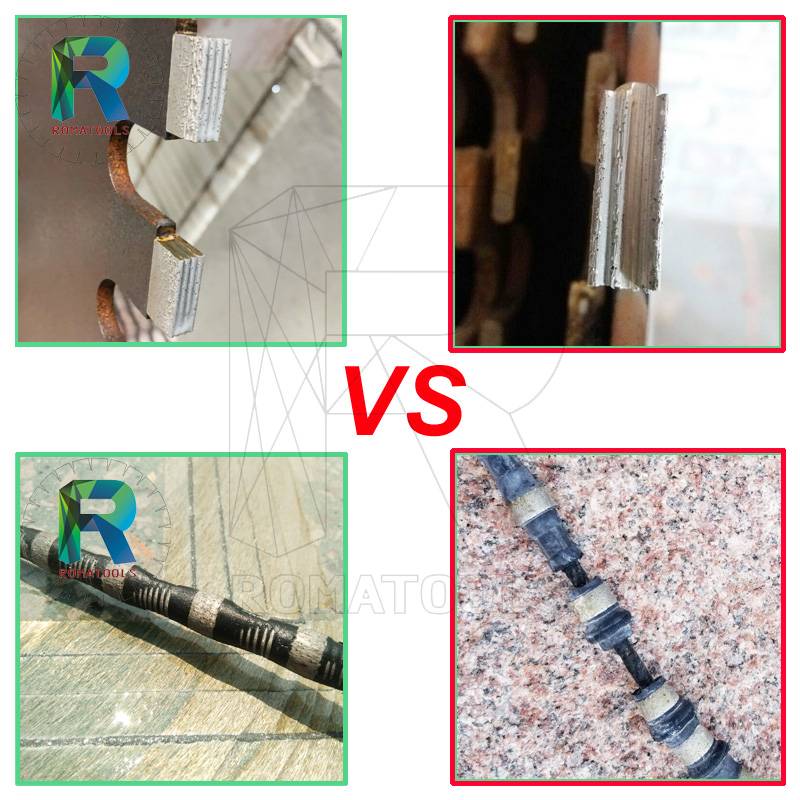

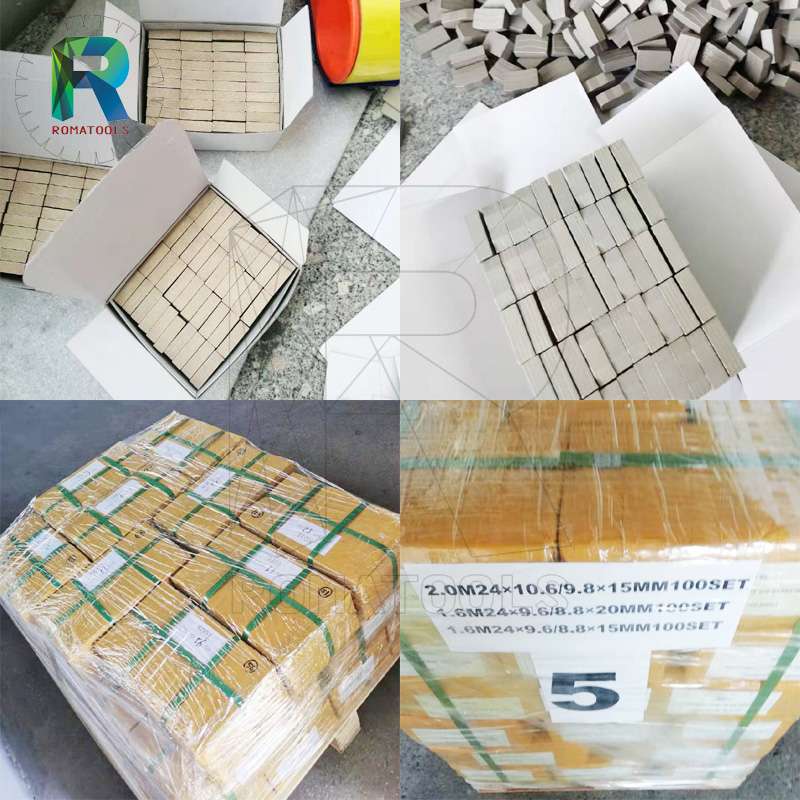

Romatools Office.jpgRomatools Exhibition 9.jpgRomatools Advantage.jpgROMATOOLS VS Others.jpgRomatools Package.jpgRomatools Packing 3.jpgRomatools Contacts.jpg
