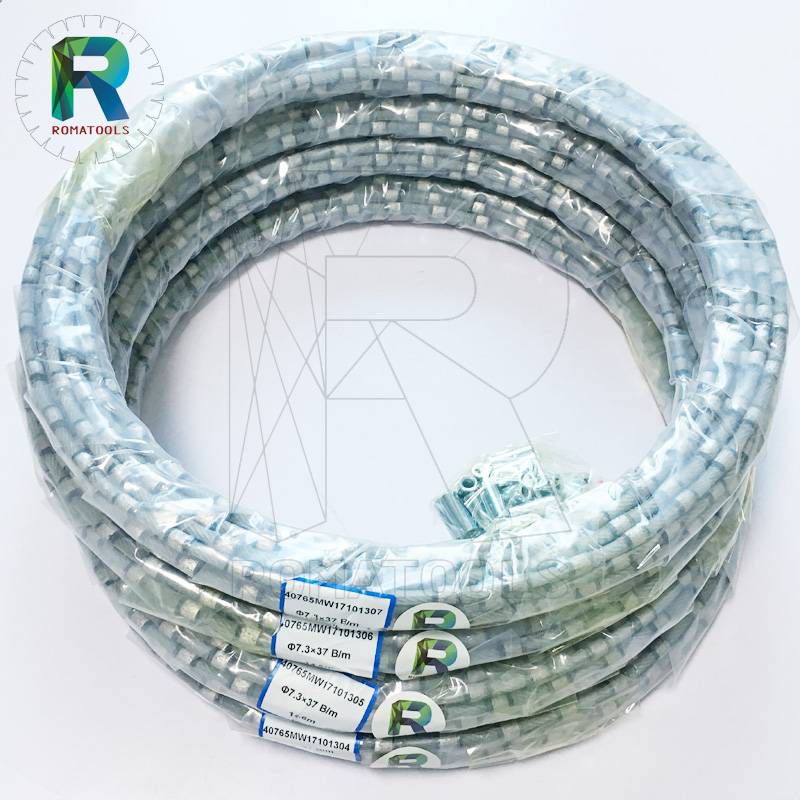

7.3mm closed loop multi wire from romatools

Scan the QR code

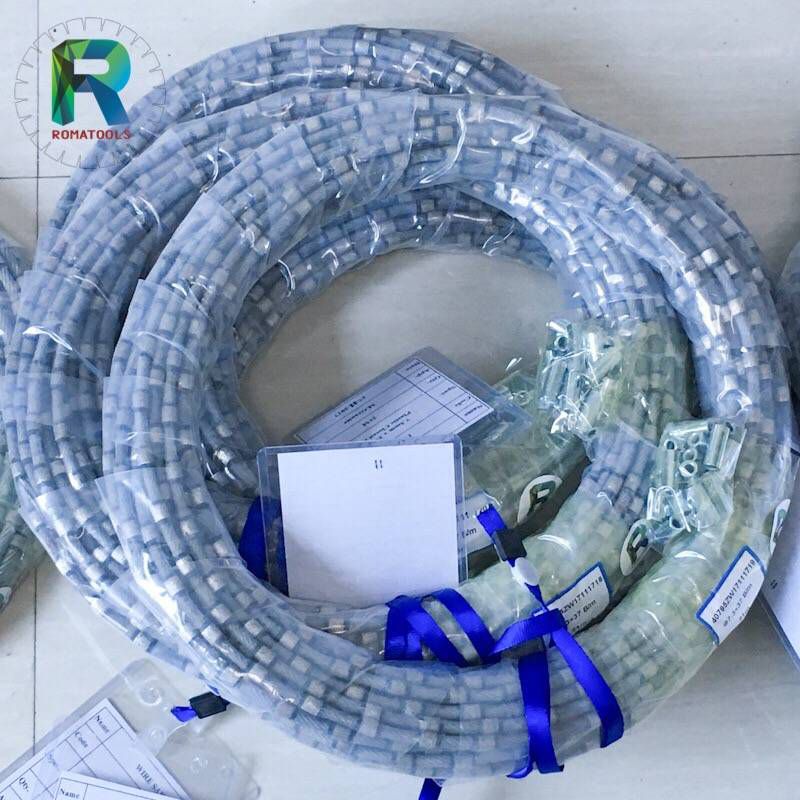

Diamond Multi Wire for Granite Block Cutting

We can provide different bond designs and beads sizes according to the stone types!

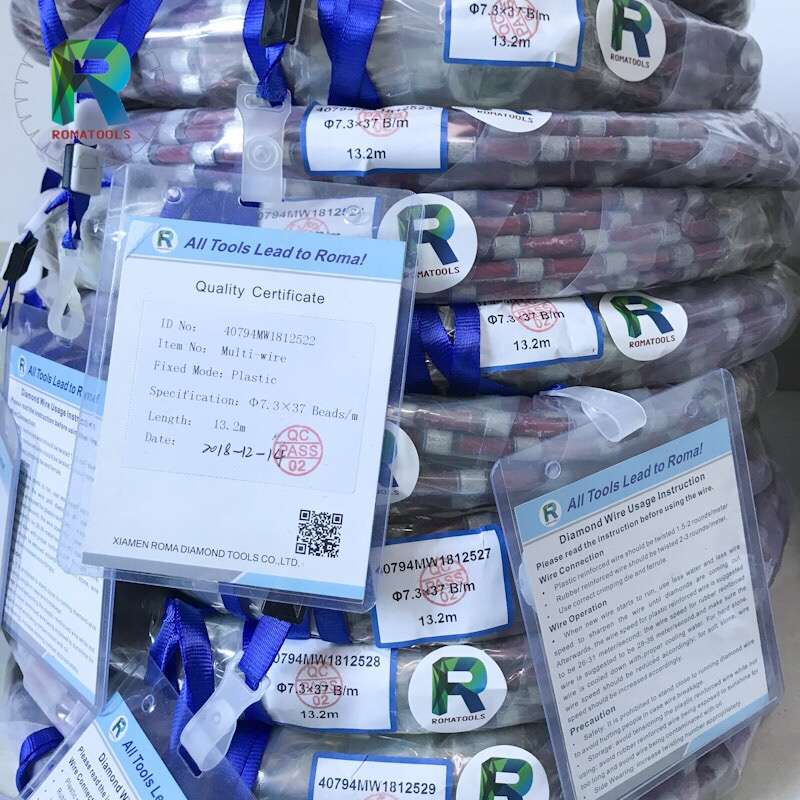

Romatools Diamond Wire Usage Instruction
Please read the instruction before using the wire.

Wire Connection
• Plastic reinforced wire should be twisted 1.5-2 rounds/meter
• Rubber reinforced wire should be twisted 2-3 rounds/meter.
• Use correct crimping die and ferrule.

Wire Operation

• When new wire starts to run, use less water and less wire speed to sharpen the wire until diamonds are coming out. Afterwards, the wire speed for plastic reinforced wire is suggested to be 26-31 meter/second; the wire speed for rubber reinforced wire is suggested to be 28-36 meter/second, and make sure the wire is cooled down with proper cooling water. For hard stone, wire speed should be reduced accordingly; for soft stone, wire speed should be increased accordingly.

Precaution
• Safety: It is prohibited to stand close to running diamond wire to avoid hurting people in case wire breakage.
• Storage: avoid tensioning the plastic reinforced wire while not using; avoid rubber reinforced wire being exposed to sunshine for too long and avoid wire being contaminated with oil.
• Side Wearing: increase twisting number appropriately.
