D1200 24x6x8mm 3 Sides Opening Segments for Hard Marble Travertine Fast Cutting

Scan the QR code

Item No.：
SC802
Specifications：
Dia.: 1200mm
Spec.: 24x6x8mm
Num.: 80pcs/set
App.: Marble/Travertine
Opening: 3 Sides
Inquire

Product Description

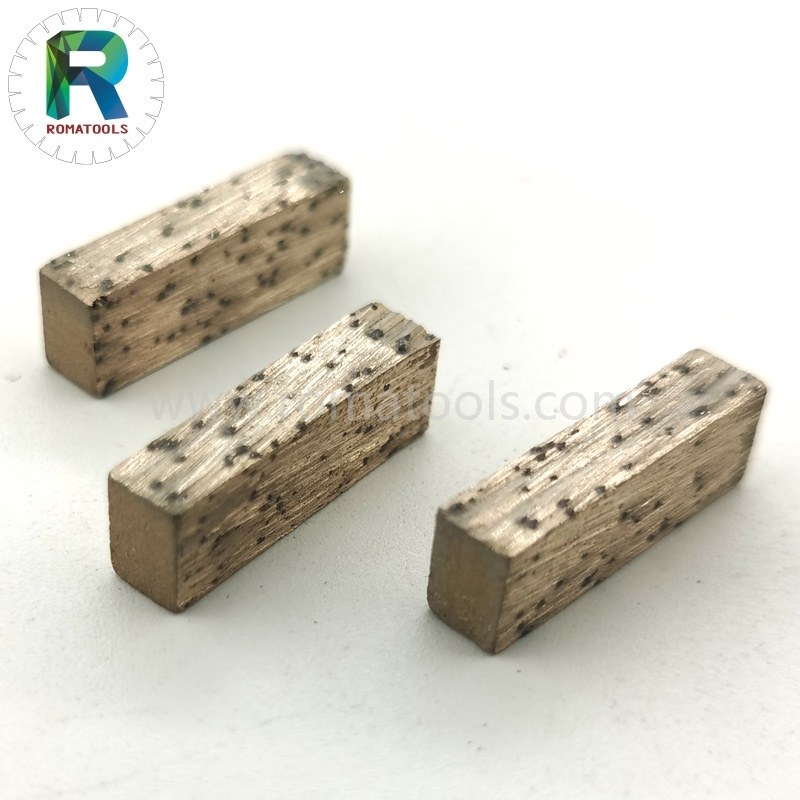

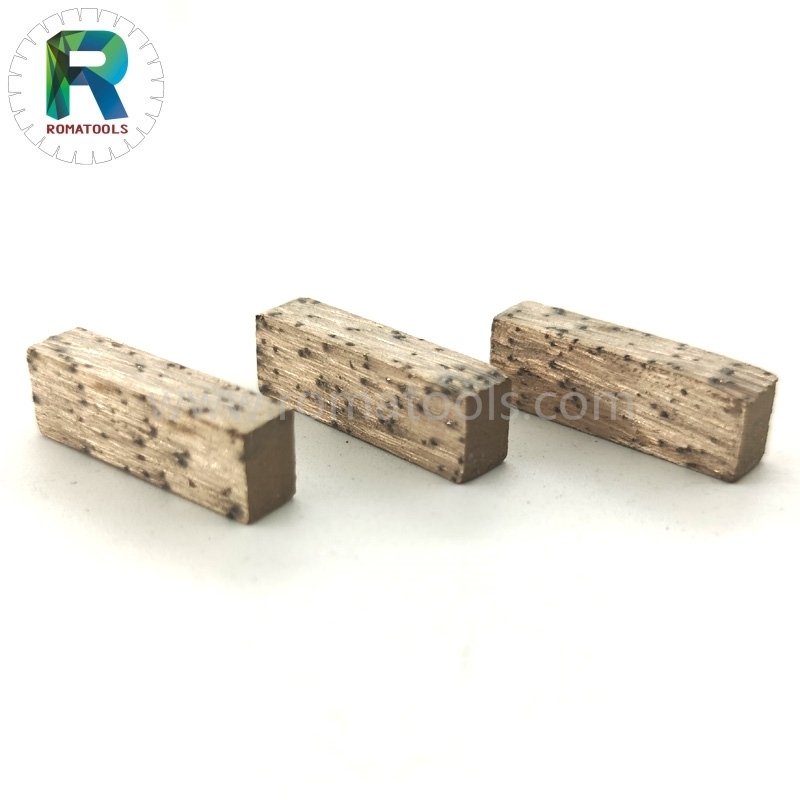

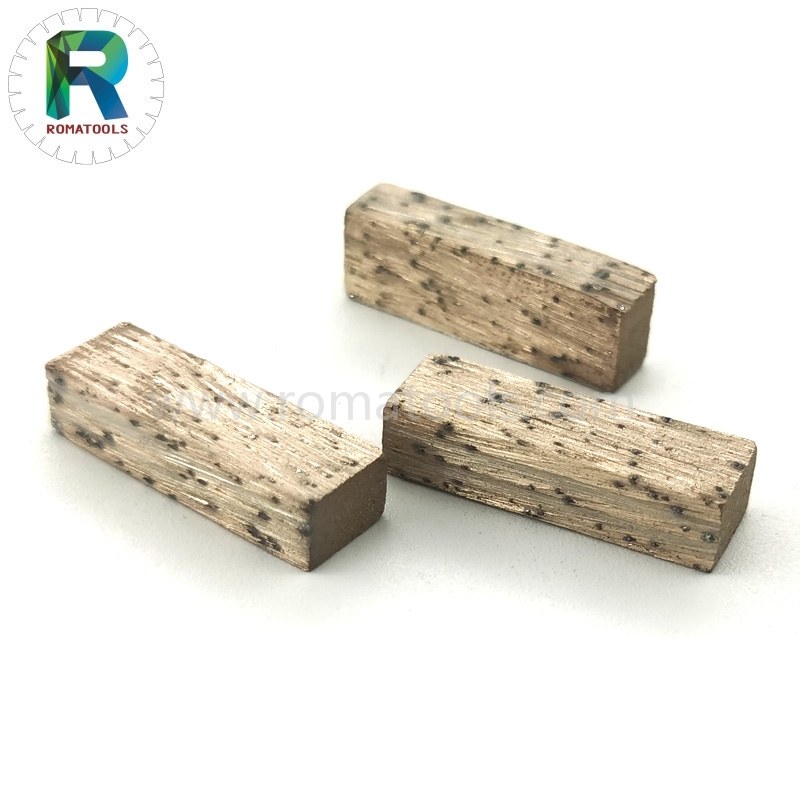

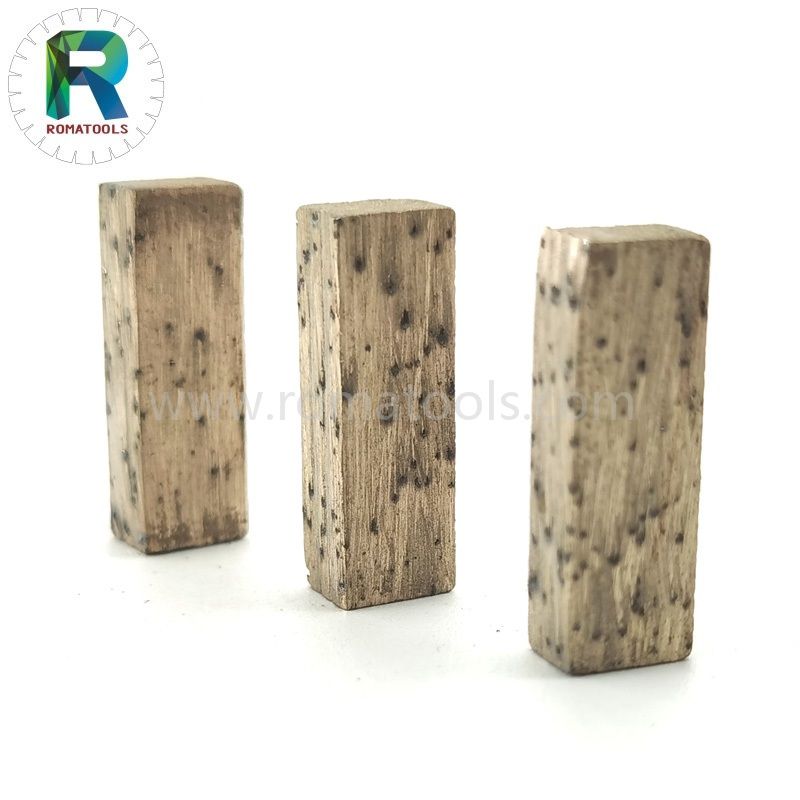

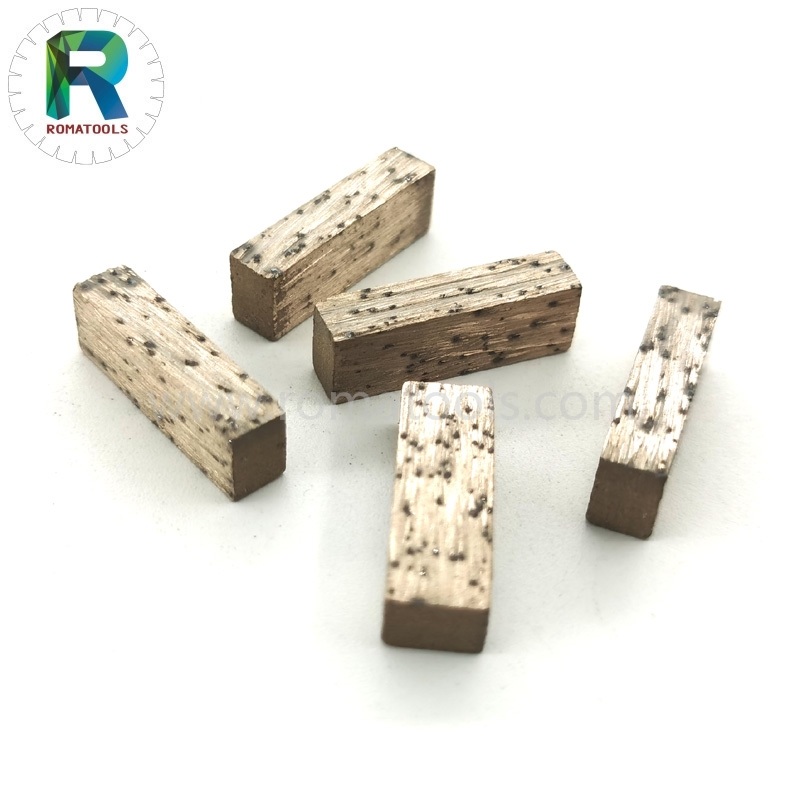

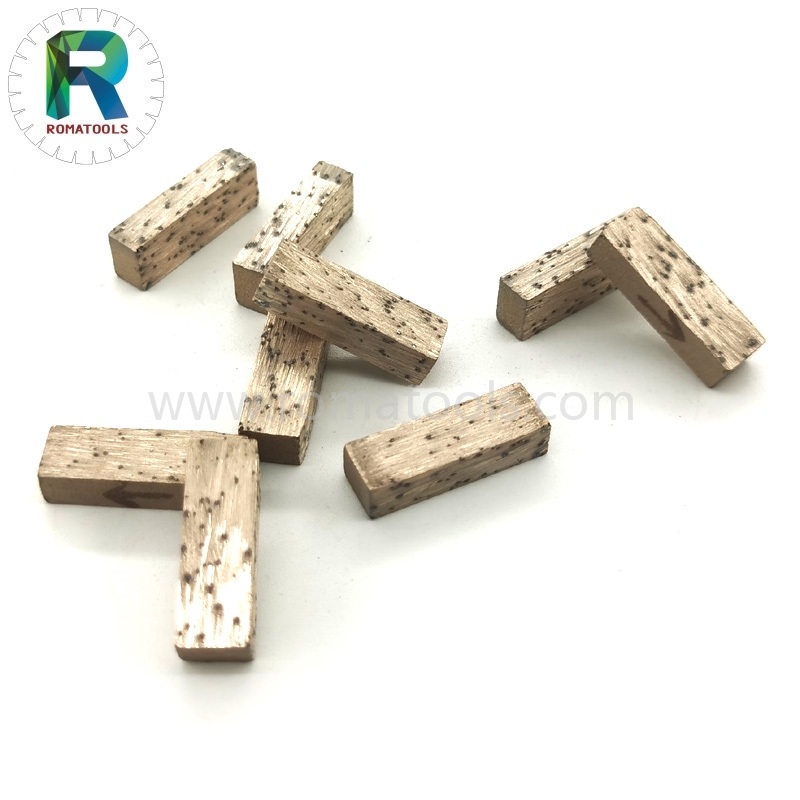

D1200 24x6x8mm 3 Sides Opening Segments for Hard Marble Travertine Fast Cutting

Dia.: 1200mm

Spec.: 24x6x8mm

Num.: 80pcs/set

App.: Marble/Travertine

Opening: 3 Sides

Specifications:

Romatools Diamond Segments For Marble, Limestone, Travertine
DiameterSegment
No.		Recommended Segment Size（mm）
inchmm
12D3002140x3.0x10、40x3.2x10、40x3.8x10
14D3502440x3.2x10、40x3.8x10
16D4002840x3.6x10、40x5.0x10(Horizontal)
18D4503240x3.6x10、40x4.0x10、40x4.2x10、40x4.2x10/12 D type、
40x4.5x10、40x5.0x10、40x5.0x12、40x5.0x10/12 D type
20D5003640x4.2x10、40x4.5x10、40x5.0x10、40x5.0x12、
40x5.5x10(Horizontal)、40x6.0x10(Horizontal)
24D6004240x5.0x10、40x5.0x12、40x5.5x10
32D8004640x6.0x10、40x6.0x15、40x6.5x12
36/40D900/D100064/7040x7.0x10、40x7.5x10、40x8x10、40x8x12；24x8x10、24x8x13
48D12008040x8x10、40x8x12、40x8.5x10、40x8.5x12；24x7.5x10、
24x8x10、24x8x13；24x5x8、24x5.5x8、24x6x8、24x6.5x8
64D160010840x8.5x10、40x8.5x12；40x9.0x12、24x9x10、24x9.2x10、
24x9x13、24x9.5x13、24x10x10、24x10x13
80/88D2000/2200128/13224x12x13、24x11x10
GangsawThickness (mm)Recommended Segment Size（mm）
3.020x4.5/3.9x8
3.520x4.9/4.3x8、20x4.9/4.3x10
4.020x5.4/4.8x8、20x5.4/4.8x10
Note：Other specifications are available upon request!
